Imagine never having to brave the storm or freezing temperatures just to start your diesel generator. With a remote start, you can power up your generator from the comfort of your home.

If you’ve been wondering how to make this convenient upgrade, you’re in the right place. By the end of this article, you’ll have a clear, step-by-step guide on how to connect a generator remote start to your diesel generator. We’ll break down the process into simple, manageable steps so that you can boost your generator’s functionality without any technical headaches.

Ready to transform how you power up? Let’s dive in.

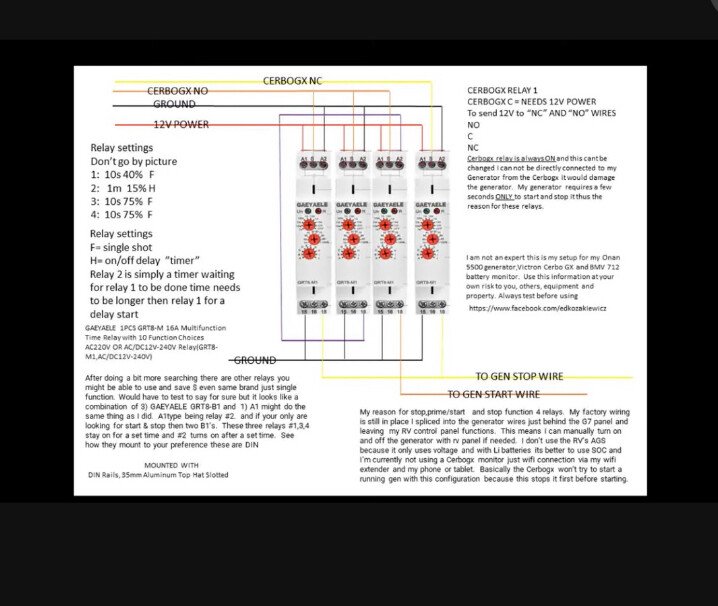

Credit: community.victronenergy.com

Benefits Of Remote Start

Remote start adds convenience and safetyto diesel generator use. It lets you start the generator from a distance. This means no need to go outside in bad weather or dark. It also reduces risks of accidents near the generator.

Using remote start helps improve the generator’s lifespan. The generator runs only when needed, which lowers wear and tear. It also allows smoother starts, reducing strain on engine parts.

Energy efficiencyimproves by avoiding unnecessary running. The generator turns on exactly when power is needed. This saves fuel and lowers running costs.

Credit: www.rvmp.co

Types Of Diesel Generators

Diesel generatorscome in two main types: portableand standby. Portable generators are small, easy to move, and used for short-term power needs. Standby generators are larger and provide power automatically during outages. They are fixed in one place and handle long-term power supply.

For remote start compatibility, check these key features:

• Remote start system must match the generator’s control panel.
• Look for generators with built-in remote start ports.
• Ensure the voltage and wiringfit the remote start device.
• Generators with digital controllersare easier to connect remotely.
• Check if the generator supports automatic shutdownfor safety.

Required Tools And Materials

The Remote Start Kit Componentsusually include a remote control, receiver module, and wiring harness. These parts help start the diesel generator from a distance.

For Wiring and Connectors, use insulated wires and proper connectors that match the generator’s terminals. Good wiring ensures safe and reliable connections.

Safety Equipmentis crucial. Wear insulated gloves and safety glasses. Keep a fire extinguisher nearby. Always work in a dry area to avoid electric shock.

Preparing The Generator

Find the control panelon the diesel generator. It is usually on the side or front. The panel holds important switches and buttons.

Check the batteryto make sure it has enough power. A weak battery can stop the generator from starting remotely. Also, check the fuel level. The generator needs enough fuel to run smoothly.

Make sure the generator is completely offbefore connecting the remote start. This prevents any damage and keeps you safe while working.

Wiring The Remote Start Module

Identify the key connection points on the remote start module first. Look for terminals labeled power, ground, start,and stop.These are essential for wiring.

Connect the power wireto a constant 12V source. The ground wireshould attach to a solid chassis ground. This ensures proper module operation.

Link the start circuitwire to the generator’s starter solenoid terminal. The stop circuitwire must connect to the generator’s shutdown control. This allows remote control of engine start and stop functions.

• Verify all connections are tight and insulated.
• Double-check wiring against the generator’s manual.
• Test the remote start function before finalizing installation.

Configuring The Remote Start System

Start by setting the remote to match the diesel generator’s control system. Use the remote’s manual to enter the programming mode. Follow the steps to sync the remote with the generator’s receiver. This ensures the remote sends the correct start and stop commands.

Test the remote’s signal range by moving away from the generator. Check if the generator responds at different distances. Ensure no walls or metal objects block the signal. This helps find the best operating distance.

Set safety features like automatic shutoff and alerts. Program the remote to stop the generator if it overheats or runs too long. This prevents damage and keeps the system safe. Double-check all safety settings before use.

Troubleshooting Common Issues

No Response from Remote:Check if the remote has fresh batteries. Make sure the remote is within range of the generator. Verify that the remote is paired correctly with the generator system. Sometimes, resetting the remote or the receiver helps.

Generator Fails to Start:Confirm the generator has enough fuel and oil. Look for any error lights or codes on the generator panel. Inspect the wiring between the remote receiver and the generator. Loose or damaged wires can cause failures.

Interference and Signal Problems:Keep the remote and receiver away from metal objects and strong electronic devices. Walls and other barriers can weaken the signal. Try moving closer to the generator or removing obstacles. Use a different frequency remote if interference continues.

Credit: www.mygenerator.com.au

Maintenance Tips For Remote Start

Regular battery checkskeep the remote start system reliable. Test battery voltage and charge often. Replace weak batteries fast to avoid start failures.

Updating firmwareensures the remote start works with the latest features. Check for updates from the manufacturer regularly. Follow instructions to install updates safely.

Inspecting wiring connectionsprevents loose or corroded wires. Look for cracks, wear, or rust on all cables. Tighten loose connections and clean contacts to maintain good signals.

Frequently Asked Questions

How Do I Connect A Remote Start To A Diesel Generator?

To connect a remote start, first locate the generator’s control panel. Then, wire the remote start module to the starter circuit following the manufacturer’s guide. Ensure all connections are secure and test the remote start for proper operation before finalizing.

What Tools Are Needed To Install Remote Start On Diesel Generators?

You will need a multimeter, wire strippers, screwdrivers, electrical tape, and the remote start kit. A wiring diagram for your diesel generator is essential. These tools help ensure safe and accurate installation of the remote start system.

Can Any Diesel Generator Support Remote Start Features?

Most modern diesel generators support remote start, but compatibility depends on the control panel design. Check your generator’s manual or manufacturer specifications to confirm. Older models may require additional adapters or upgrades for remote start integration.

Is Professional Help Recommended For Remote Start Installation?

Professional installation is recommended if you lack electrical experience. Incorrect wiring can damage the generator or cause safety hazards. A certified technician ensures proper setup, compliance with standards, and reliable operation of the remote start system.

Conclusion

Connecting a remote start to your diesel generator makes operation simple. It saves time and effort during power outages. Following clear steps helps avoid mistakes and keeps you safe. Always check your generator’s manual before starting. Test the remote start system to ensure it works well.

This small upgrade brings big convenience to your power setup. Keep your generator ready for any emergency. Stay prepared and enjoy easy control at your fingertips.
